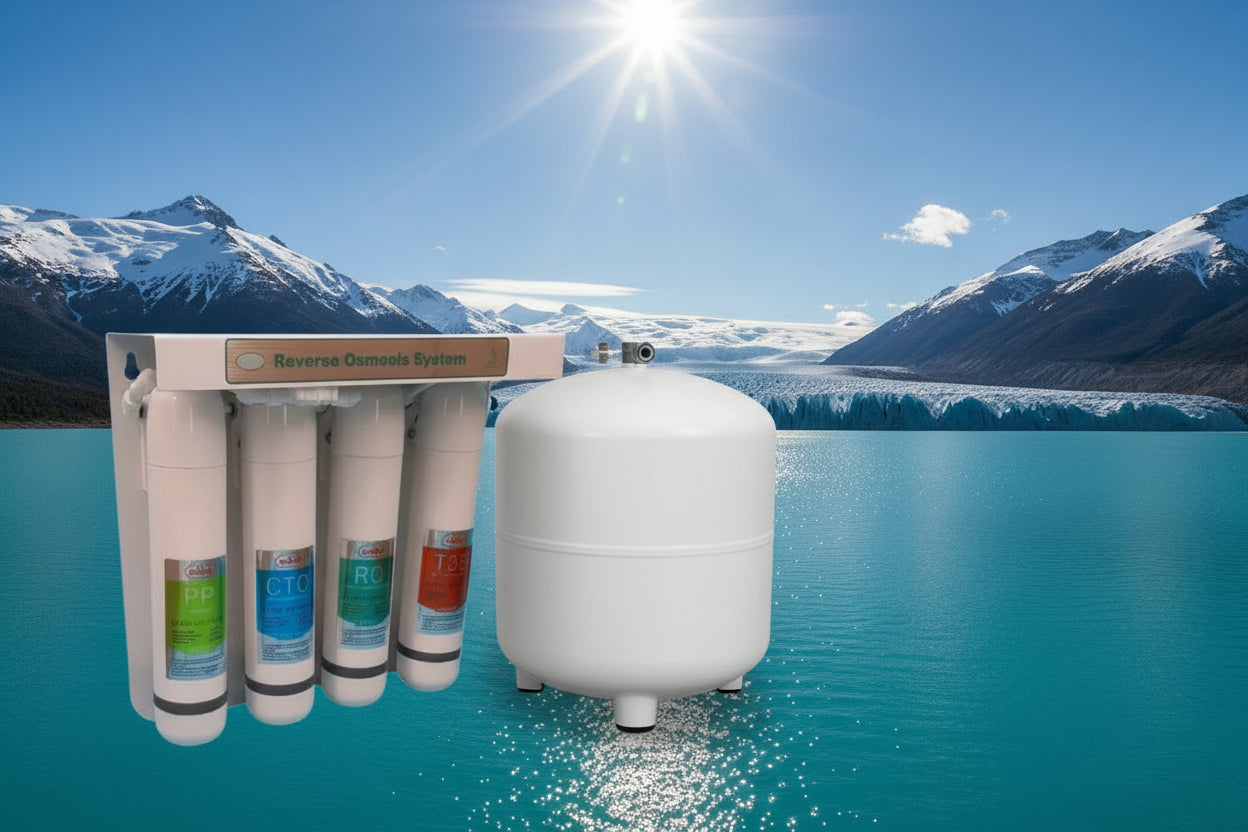

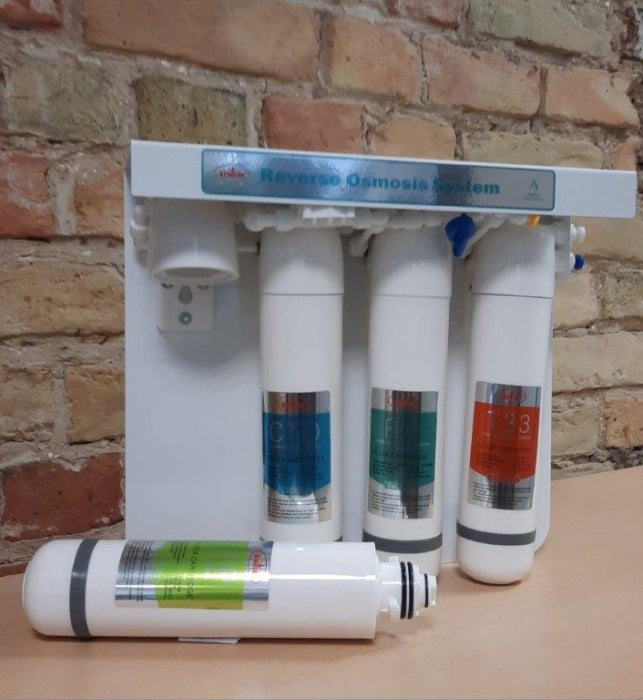

T-Big water QC75 GPD quick change reverse osmosis system + tank without pump
T-Big water QC75 GPD quick change reverse osmosis system + tank without pump
Experience soft, full-bodied taste, pure water without a guilty conscience, healthy, detoxifying effect.
Quick filter change, even for "small and weak hands"

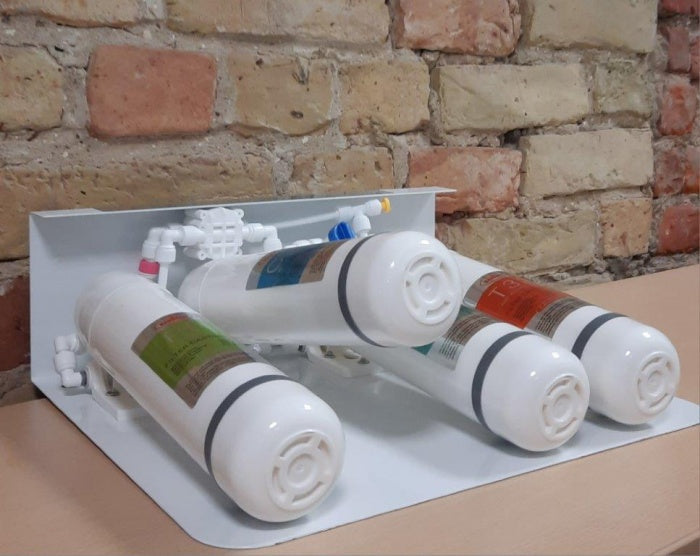

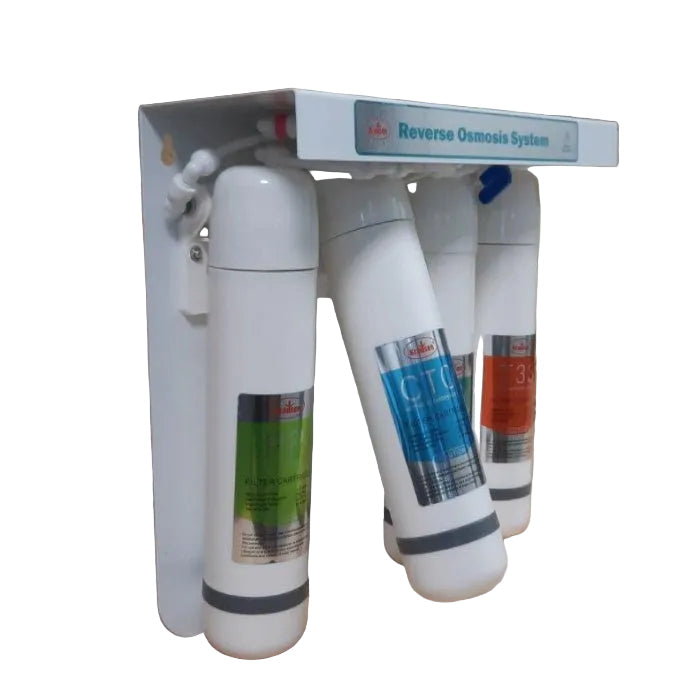

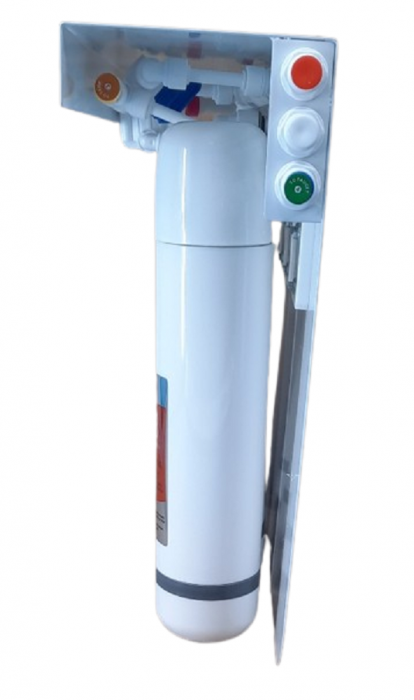

Small, slim, flat, elegant design, that's what characterizes this new reverse osmosis system. Fits under almost any sink.

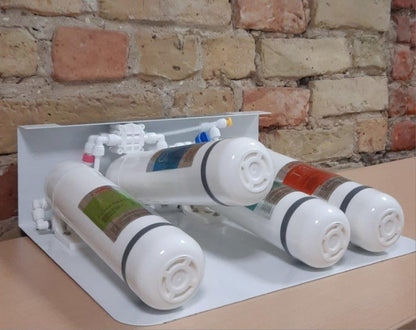

(Can also be installed horizontally, as can the tank)

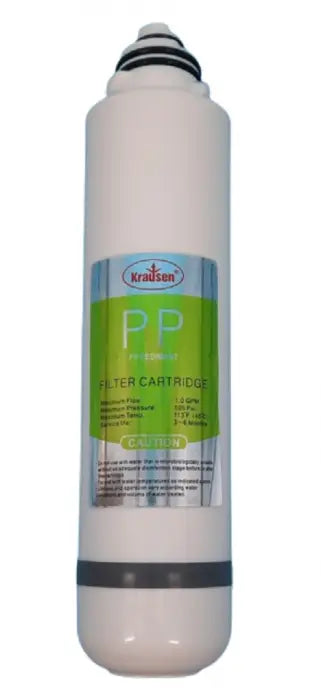

1st stage: Inline 2.0'' QUICK Filter PP 5 micron: Filters sand, dust, rust particles
2nd stage: Inline 2.0'' QUICK Filter CTO: Reduces chemicals, removes chlorine.
3rd stage membrane 75 GPD: Main filter unit, the power unit, filters down to 0.0001 microns: Filters viruses, bacteria, chemicals, heavy metals, fluorine, lime, etc.
4th stage: Inline 2.0'' QUICK post-filter coconut activated carbon: post-filter, last protection stage
6-7th stage: Schauberger swirler
- Filter change intervals:
Every 6 months: 1st stage: Inline 2.0'' QUICK Filter PP 5 micron: Filters sand, dirt, rust particles
Every 6 months: 2nd stage: Inline 2.0'' QUICK Filter CTO: Reduces chemicals, breaks down chlorine.
Every 2 years: 3rd stage membrane 75 GPD: Main filter unit, the power unit, filters down to 0.0001 microns: Filters viruses, bacteria, chemicals, heavy metals, fluorine, lime, etc.
Every 6 months: 4th stage: Inline 2.0'' QUICK post-filter coconut activated carbon: post-filter, last protection stage
Replacement filter sets, please click on the photo:
For technical reasons:
Note: Every reverse osmosis system produces both pure water and waste water during operation.
This pure water to wastewater ratio depends on the following factors:
Tap water pressure; temperature; conductivity; hardness; iron content; flow restrictor, etc.
Therefore, only an approximate value can be given, which for this system is approximately 1 to 3-4
This means that for every litre of pure water the system produces 3-4 litres of waste water. This is due to technical reasons.
given and is independent of this product.
*: At lower water pressures the filtration rate decreases.
- Filtration performance: With an input water conductivity of assumed 250mg/l = ppm / 500µS you get 12 ppm / 25 µS* pure water value
*: Depending on water quality such as conductivity and hardness, temperature
- professional angle valve adapter
- Profi-Aquastop
- professional tank valve DM
- Turbine vortex according to Schauberger technology
- hose cutter
- tank pressure gauge
Water requirement:
- Water pressure, min. 3 bar, max. 6 bar
- Water temperature: Min. 2°C max. 45 °C
- Input water, mg / l, max. 600 (ppm) / 1200 µS
- Iron content max. 0.2 mg / L
- pH value: 3 - 11
- Hardness: Max. 22 °dH
- Only suitable for drinking water filtration
Replacement filter cartridges: Please contact us directly:
Complete information

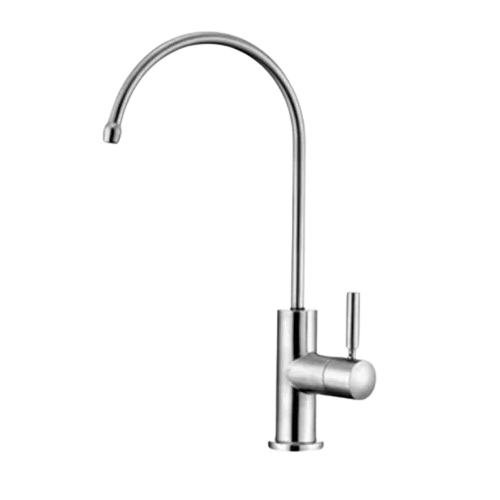

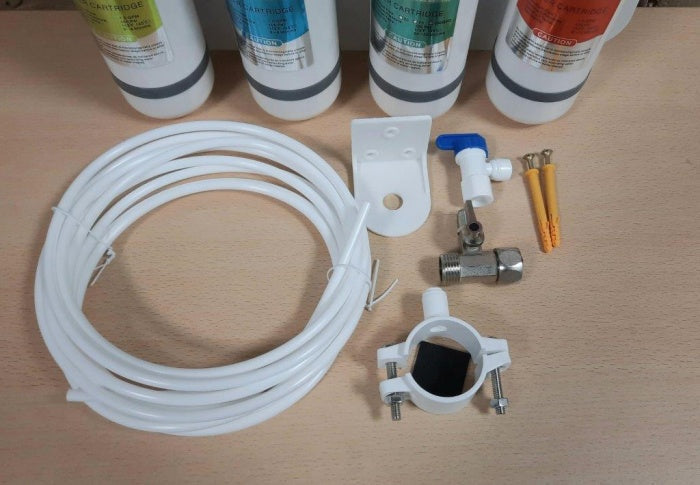

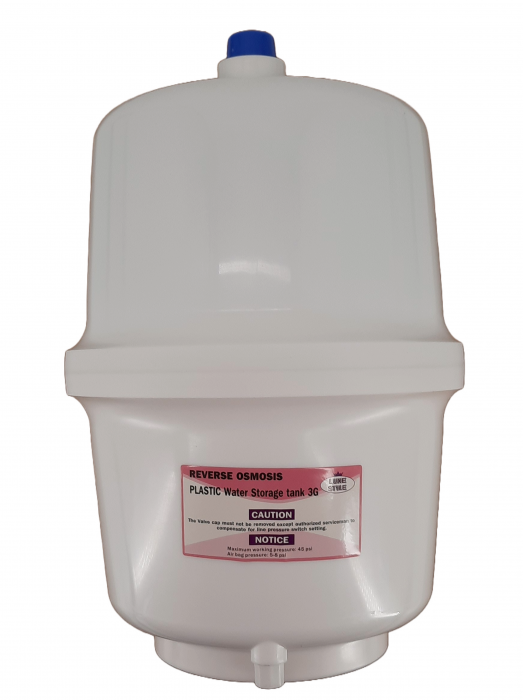

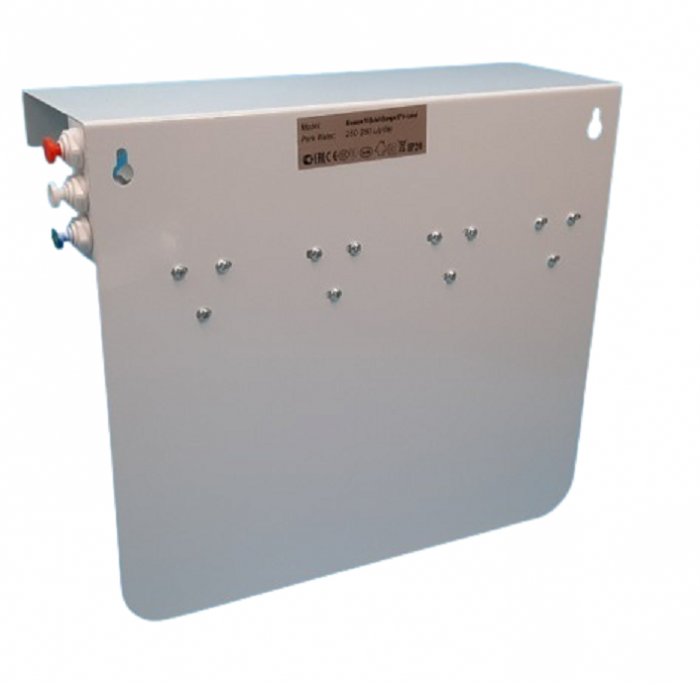

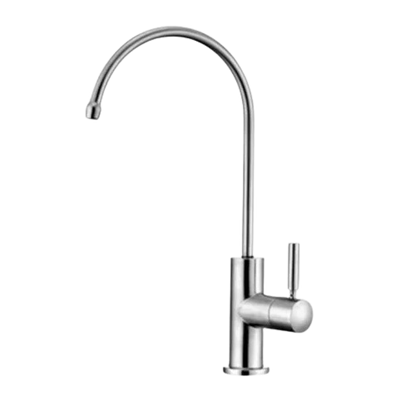

Ready-to-install 4-stage system with Schauberger turbine swirler, 75 GPD membrane, quick-change technology, 5 litre metal tank from PA-E, osmosis tap depending on selection, wall bracket, hoses, drain clamp,
- professional angle valve adapter
- Profiaquastop
- 2x additional check valves
- tank shut-off valve from DM
- hose cutter
- tank pressure gauge
